Condair DP-W/R

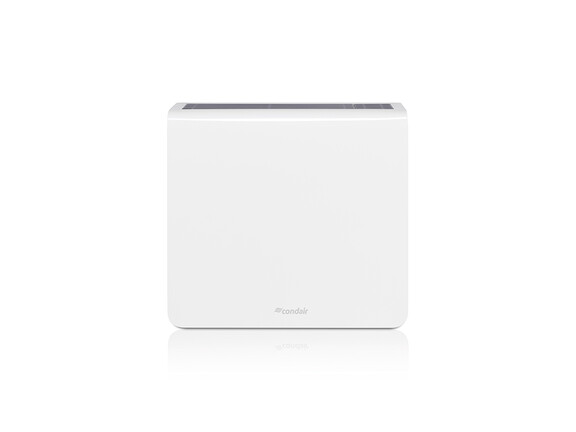

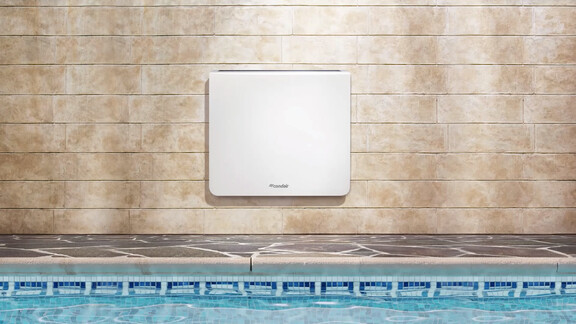

Wall-mounted swimming pool dehumidifier

The Condair DP-W/R series offers flexible wall-mounted (W) and rear-wall (R) dehumidifier solutions for small to medium-sized swimming pools. Their slim, compact design minimises installation space while ensuring quiet and efficient operation.

Condair DP-W/R swimming pool dehumidifier

Top of page Features Product details Downloads FAQs

Accessories and humidity control

The Condair DP-W and DP-R series offer an extensive collection of accessories and humidity control options. Available upgrades include electric or hot water heating coils, a built-in humidity sensor, and 90° plenum and grilles. The units can be controlled via the integrated sensor, external hygrostats, or other humidity controllers. Modbus RTU is available for building management system integration.

Comfortable ambient atmosphere instead of unpleasant, sticky heat.

Excessive humidity in indoor pools can compromise comfort, hygiene, and structural integrity. Efficient dehumidification ensures a healthy and comfortable environment, protects the building, and reduces energy costs through integrated heat recovery, maintaining optimal air quality and safety for occupants.

Installation options

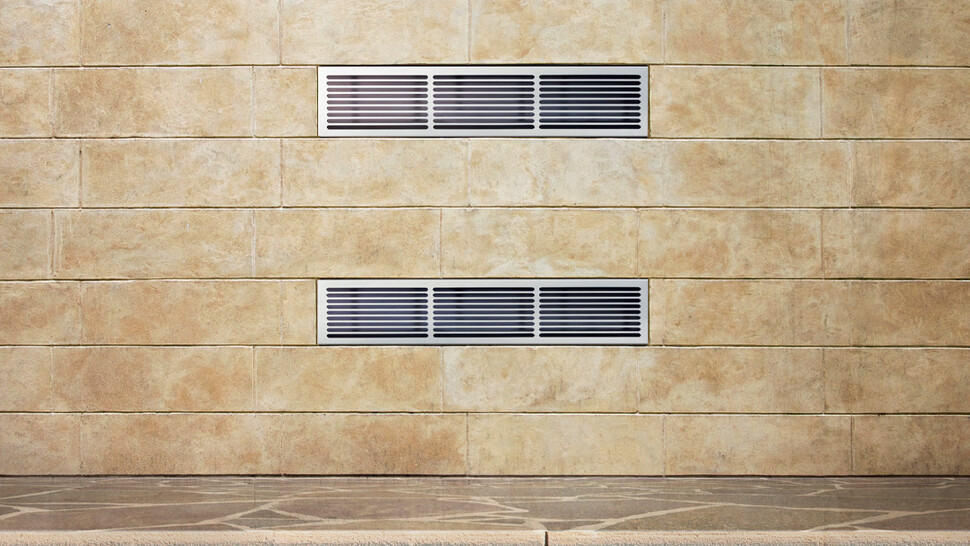

The DP-W is a sleek wall-mounted unit installed directly in the pool area, while the DP-R is designed for behind-wall installation in an adjacent room, isolating noise-emitting components. Both provide identical performance, ensuring efficient dehumidification, precise climate control, and optimal air quality.

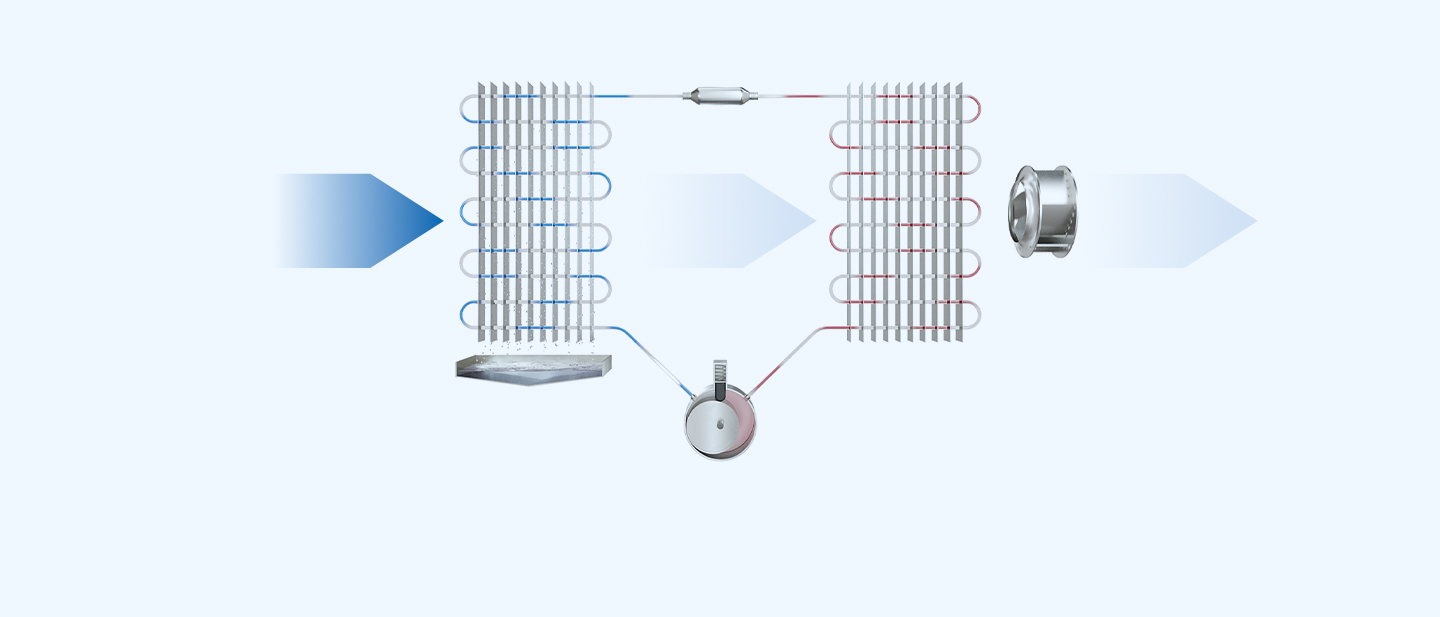

Evaporator

The air is cooled, water vapor condenses, and moisture is removed from the air.

Moist Air

Warm, humid room air is drawn in and fed into the dehumidification process.

Expansion Valve

Regulates the refrigerant pressure and prepares it for evaporation.

Condenser

The dried air is reheated while the refrigerant releases heat.

Dry Air

Dehumidified, slightly warmed air is discharged back into the room.

Evaporator

The air is cooled, water vapor condenses, and moisture is removed from the air.

Dry Air

Dehumidified, slightly warmed air is discharged back into the room.

Fan

Ensures a continuous airflow through the entire system.

Condensate Tray

The condensed water is collected and directed for controlled drainage.

Downloads

Installation & operations manual

Condair DP-W/R Installation and Operations Manual EN document · 0.0 B

See all downloads

Spare part shop

Spare parts

Condair will help you identify exactly which component you need and ensure you receive it quickly and efficiently.

Frequently asked questions

What installation options are available for Condair DP-W/R wallmounted units?

Condair DP-W units are wall-mounted directly inside the pool hall and require only power and condensate connections, offering very simple and fast installation. DP-R units are installed in an adjacent technical room, with only air grilles visible. Installing equipment in a separate room is generally preferred, as noise sources stay outside and pool space remains unobstructed.

What is the dehumidification capacity of the Condair DP-W/R series?

The dehumidification capacity of the Condair DP-W and DP-R series ranges from 56 to 210 litres per day at 30 °C and 80 % relative humidity. Depending on the model, the airflow volume ranges from 500 to 1,650 m³/h, ensuring efficient moisture removal and uniform air distribution across various pool sizes. These single-phase 230 V/50 Hz units operate across a temperature range of 20–36 °C and a humidity range down to 40 % rh, with 55–60 % rh commonly targeted in private pool applications.

Why is dehumidification important in indoor swimming pools with the Condair DP-W/R?
